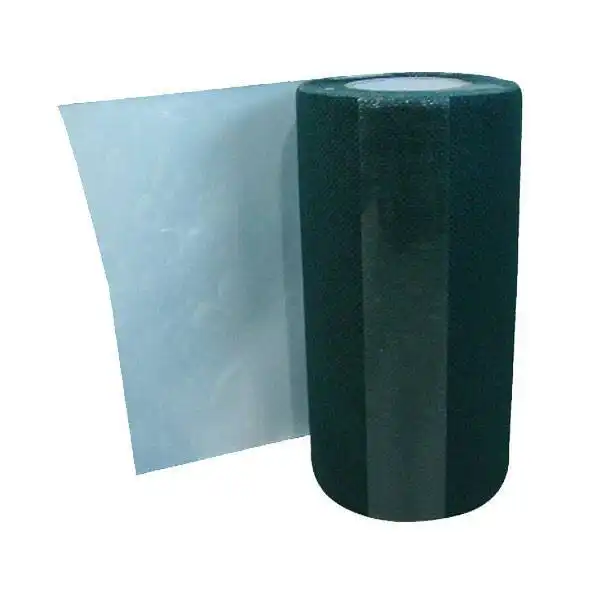

Grass seam tape
Grass seam tape is make from no-woven cloth(dark green), coating with hot melt glue, liner with white PE film. Usage: Jointing tape for Artificial grass.
2. Feature
1. Good adhesive
2. Anti-skidding
3. Good friction
4. We promise replacement within 20 months if any quality problems are found.
3. Main Application
This self adhesive joining tape is for fixing two rolls of turf together.All you do is to apply it to the bottom of the turf and remove the protective film from the adhesive backing.
4. Specification
For ornamental type:
1. HX-9005-25 85g cloth+250g glue+80g pe film
2. HX-9005-50 85g cloth+500g glue+80g pe film
For sport type:
3. HX-9006-25 120g cloth+250g glue+80g pe film
4. HX-9006-50 120g cloth+500g glue+80g pe film
Detail image
5. Technical Data
| Item Name |
Backing (um) |
Thickness (um) |
Glue (g) |
Initial
Adhesive (cm) |
Peeling
Force (kg/inc) |
Holding
Force (hrs) |
Text condition |
| Self adhesive Tulf Seam Tape | Fabrics 85g | 580um±50um | 250g±20g | <1 | >4kg/in | >5 | 23ºC + 2ºC |
| Fabrics 125g | 1000um±100um | 500g±50g | <1 | >5kg/in | >5 | 23ºC + 2ºC | |
| Fabrics 85g | 1300um±50um | 1000g±150g | <1 | >5kg/in | 1h | 30ºC + 2ºC | |
| Standard | PSTC-6 | PSTC-1 | PSTC-7 |
6. Packaging:
Finished-products package: Each rolls separated by release paper and put in plastic bag, then to be boxed.
We can make other package as your requirement, normally our quotation will contain the common package. If you need your own packages, you'd better advise your requirement ahead of time for an accurate quote.
The common used carton box specification as below:
|
Carton box category |
Size(L*W*H) |
|
normal |
55cm*44cm*36cm |
|
normal |
55cm*44cm*32cm |
|
normal |
55cm*44cm*26cm |
|
normal |
39cm*39cm*32cm |
|
normal |
39cm*39cm*35cm |
|
normal |
51cm*21cm*30.5cm |
|
HX strengthen box |
28cm*23cm*35.5cm |
|
Hardened case |
40cm*40cm*35cm |
|
Hardened case |
48cm*48cm*35cm |
Packaging process
7. Shipping
8.FAQ
1. Is the tape water-proof?
The tape can pass the water-proof test if it has used on the artificial grass after one.But the tape will not work if you put the water on it. But the tape will not work if you put the water on it.
2. Is the tape heat resistant?
This tape is made of hot melt glue, it can resistant 60℃ to -5℃. If it has used on artificial grass, it can use in any temperature environment.
3. How long can the tape be used?
The tape can be use for 1 or 2 years, so some client abandon to use it in football ground.
4. What is the specification?
The general specification is 15cmx5m，10m，20m. It can also be produced by requirement.
5. How about the package?
Generally one roll per shrink, and one white pe film on the bottom and top. We can make other package as your requirement
6. Does this products have drawback?
Yes, it’s tax refund rate is 16%
7. How about the delivery time?
It takes 3-5 days for general specification and package product.
It takes 20-25 days for FCL and customize design.
8. Is the tape eco-friendly?
Yes, this product used the eco-friendly hot melt glue. It is eco-friendly products.
