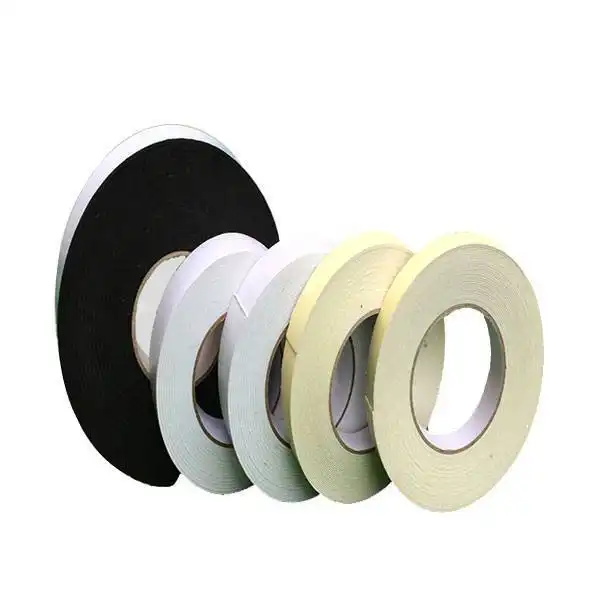

EVA foam tape

Model Number:

ISO/9001:2008/SGS

Delivery times:

10-15 days

Inquiry

Write a Review

Brand Name

Seagull

Packaging Details

Inside packing:opp shrink filmOutside packing:paper carton

Payment Terms

L/C,D/A,D/P,T/T,Western Union,cash/credit card

Min.Order Quantity

100Roll

Port

shenzhen

Place of Origin

Guangdong, China (Mainland)

EVA foam tape

1. Product Description
As base on EVA foam coating on both sides or single side with strong solvent acrylic adhesive or hot melt adhesive or rubber adhesive and with colored release paper.

2. Feature
1. Fast penetration and strong adhesiveness, anti-aging
2. Double stick, excellent softness, don't come off
3. Moderate tensile strength, convenient to use and easy to tear
4. Suitable for the rough paste surfaces and with moderate flexibility
5. The material of easily degradable without pollution, comply with environmental standard
6. Oil based and water based
7. White and yellow or other colored release paper/ film are available

3. Main Application
EVA foam tape is designed for adhering to the irregular surface, fixing the nameplate, mirror and often used in the automobile industry such as door sealing strips, pedal and metal boards. Specially suitable for the fixation of inner structure in the glass combination like the glass curtain wall and soundproof wall , also EVA foam tape used to stick the car decorations and for the combination orientation of sound source inside the voice box.

4. Detail image:

5. Specification

Material:	EVA and release paper / other colored film
Use:	Carton sealing & Masking
Adhesive Side:	Double Sided / single sided
Adhesive:	Acrylic/ hot melt
Adhesive Type:	Hot Melt, Pressure Sensitive
color:	White / Yellow/black
price:	competitive price
dimensions:	it can be customized
thickness:	0.5-10mm
width:	As to customer requirements
length:	As to customer requirements
jumbo rolls:	1.02m*200m (semi-finished products)
other:	die cut provided

Product parameters:

Backing Material	EVA Foam
Glue Type	solvent adhesive & Hot melt adhesive & Acrylic
Thickness	0.5-10mm
Length / Width	As customer's request
Packaging	In common shrink, carton/box packing or as customer's request
Initial Adhesive (Steel ball test)	≥8#.
Holding Power (to stainless steel)	≥12 hour
180°stripping resistance (N/25mm)	≥10 N/25mm
Tensile Strength	62-97 N/25mm

Technical parameters:

Item No.	80°Stripping Resistance	Holding Power(hours)	Tensile strength	Breaking Elongation	Temperature resistance	Backing material thickness
HX-3005	≥10	≥12	≥15N	100%	-10-80°C	50um±15um
HX-3010	≥10	≥12	≥20N	100%	-10-80°C	100um±15um
HX-3015	≥10	≥12	≥30N	150%	-10-80°C	200um±15um

6. Packaging:
EVA foam tape package: Each rolls separated by release paper and put in plastic bag, then to be boxed
EVA foam tape jumbo roll package: Package by kraft paper first, Then put them into a opp bag.
We can make other package as your requirement, normally our quotation will contain the common package. If you need your own packages, you'd better advise your requirement ahead of time for an accurate quote.

Packaging Detail	A. 1 roll/shrink, 4 rolls/shrink, 6 rolls/shrink B. 24 rolls/carton, 36rolls/carton, 48rolls/carton according to customer's request.
Delivery Detail	within 15-20 days after the order confirmed.

The common used carton box specification as below:

Carton box category	Size(LWH)
normal	55cm44cm36cm
normal	55cm44cm32cm
normal	55cm44cm26cm
normal	39cm39cm32cm
normal	39cm39cm35cm
normal	51cm21cm30.5cm
HX strengthen box	28cm23cm35.5cm
Hardened case	40cm40cm35cm
Hardened case	48cm48cm35cm

Packaging process

7. Shipping

8. After-sales service
1. we promise replacement within 20 months if any quality problems are found.
2. Your inquiry related to our product & price will be replied within 24 hours.
