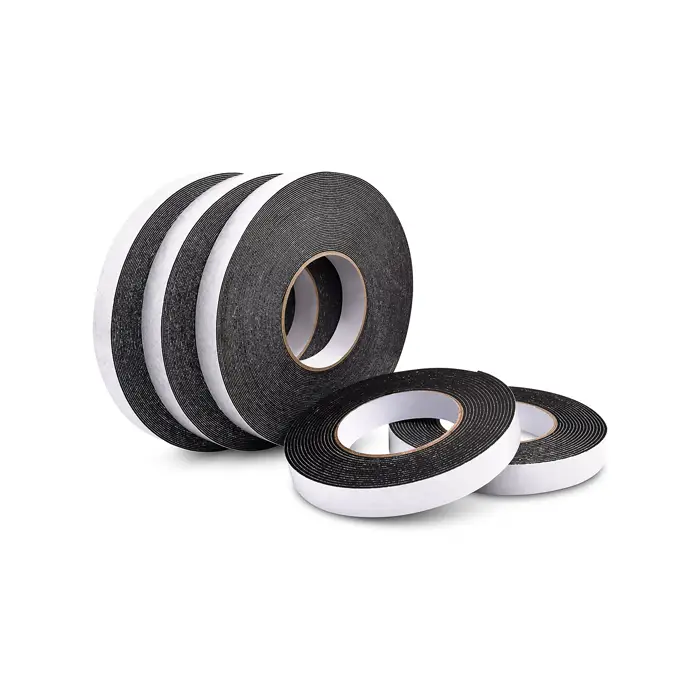

    Double sided foam tape
    1. Product Description
    As base on EVA foam coating on both sides /single side with Solvent Acrylic adhesive or hot melt adhesive and with colored release paper/ film.

    2. Feature
    1. Fast penetration and strong adhesiveness, anti-aging
    2. Double stick, excellent softness, don't come off
    3. Moderate tensile strength, convenient to use and easy to tear
    4. Suitable for the rough paste surfaces and with moderate flexibility
    5. The material of easily degradable without pollution, comply with environmental standard
    6. Oil based and water based
    7. White and yellow or other colored release paper/ film are available


    3. Main Application
    It is designed for adhering to the irregular surface, fixing the nameplate, mirror and often used in the automobile industry such as door sealing strips, pedal and metal boards. Specially suitable for the fixation of inner structure in the glass combination like the glass curtain wall and soundproof wall , also used to stick the car decorations and for the combination orientation of sound source inside the voice box.
    Double sided foam tape

    4.Detail image
    Double sided foam tape


    5. Specification
    Material: EVA and release paper / other colored film
    Use: Carton sealing & Masking
    Adhesive Side: Double Sided
    Adhesive: Hot melt
    Adhesive Type: Hot Melt, acrylic
    color: Black
    price: competitive price
    dimensions: Double sided foam tape can be customized
    thickness: 2mm
    width: As to customer requirements
    length: As to customer requirements
    jumbo rolls: 1.02m*200m (semi-finished products)
    other: die cut provided


    Product parameters:

    Backing Material EVA Foam
    Glue Type Hot Melt, Pressure Sensitive
    Thickness 2mm
    Length / Width As customer's request
    Packaging In common shrink, carton/box packing or as customer's request
    Initial Adhesive (Steel ball test) ≥8#.
    Holding Power (to stainless steel) ≥12 hour
    180°stripping resistance (N/25mm) ≥10 N/25mm
    Tensile Strength 62-97 N/25mm

    Technical parameters:

    Item No. 80°Stripping Resistance Holding Power(hours) Tensile strength Breaking Elongation Temperature resistance Backing material thickness
    HX-3005 ≥10 ≥12 ≥15N 100% -10-80°C 50um±15um
    HX-3010 ≥10 ≥12 ≥20N 100% -10-80°C 100um±15um
    HX-3015 ≥10 ≥12 ≥30N 150% -10-80°C 200um±15um


    6. Packaging:
    Finished-products package: Each rolls separated by release paper and put in plastic bag, then to be boxed
    Jumbo roll package: Package by kraft paper first, Then put them into a opp bag.

    We can make other package as your requirement, normally our quotation will contain the common package. If you need your own packages, you'd better advise your requirement ahead of time for an accurate quote.

    Packaging Detail
    A. 1 roll/shrink, 4 rolls/shrink, 6 rolls/shrink B. 24 rolls/carton, 36rolls/carton, 48rolls/carton according to customer's request.
    Delivery Detail
     within 15-20 days after the order confirmed.

    Packaging process
    double sided foam tape

    7. Shipping

    double sided foam tape

    8. After-sales service
    1. we promise replacement within 20 months if any quality problems are found.
    2. Your inquiry related to our product & price will be replied within 24 hours.
