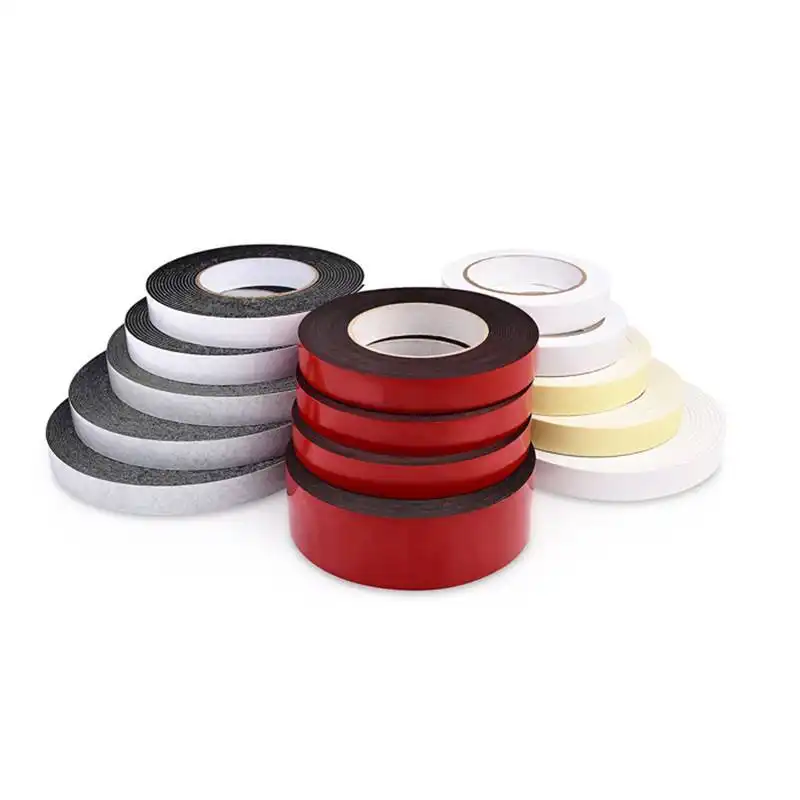

double sided eva foam tape
1. Product Description
As base on EVA foam coating on both sides or single side with strong Solvent hot melt adhesive and with colored release paper.
2. why choose us
1. Provide free samples
2. 100% payment protection
3. Adhesive tape industry first propose: 20 months guarantee change of article or refund if unsatisfactory.
4. A manufacturer combined of Making Glue, Coating semi-finished Jumbos, Cutting and Packaging the finished tapes.
5. Having a full line of professional tape testing equipment, quality of follow-up monitoring.
6. 10 years to focus on hot melt adhesive tapes, senior engineers with 15 years experience in this field.
7. Adopted good quality imported and Sinopec law material.
8. Haixiang independent R&D of coated glue formula have excellent adhesion, strong weather resistance, summer and winter can used commonly.
9. Provide professional product customization services;
10. 5 years experience in overseas markets, cooperated with Amazon and other well-known enterprise.
3. Main Application
Double sided eva foam tape is designed for adhering to the irregular surface, fixing the nameplate, mirror and often used in the automobile industry such as door sealing strips, pedal and metal boards. Specially suitable for the fixation of inner structure in the glass combination like the glass curtain wall and soundproof wall , also used to stick the car decorations and for the combination orientation of sound source inside the voice box.
4. Specification
| Material: | EVA and release paper / other colored film |
| Use: | Carton sealing & Masking |
| Adhesive Side: | Double Sided |
| Adhesive: | Hot melt |
| Adhesive Type: | Hot Melt, acrylic |
| color: | White/Yellow/Black |
| price: | competitive price |
| dimensions: | it can be customized |
| thickness: | 0.5mm |
| width: | As to customer requirements |
| length: | As to customer requirements |
| jumbo rolls: | 1.02m*200m (semi-finished products) |
| other: | die cut provided |
Product parameters:
| Backing Material | EVA Foam |
| Glue Type | solvent adhesive & Hot melt adhesive & Acrylic |
| Thickness | 0.5mm |
| Length / Width | As customer's request |
| Packaging | In common shrink, carton/box packing or as customer's request |
| Initial Adhesive (Steel ball test) | ≥8#. |
| Holding Power (to stainless steel) | ≥12 hour |
| 180°stripping resistance (N/25mm) | ≥10 N/25mm |
| Tensile Strength | 62-97 N/25mm |
Technical parameters:
| Item No. | 80°Stripping Resistance | Holding Power(hours) | Tensile strength | Breaking Elongation | Temperature resistance | Backing material thickness |
| HX-3005 | ≥10 | ≥12 | ≥15N | 100% | -10-80°C | 50um±15um |
| HX-3010 | ≥10 | ≥12 | ≥20N | 100% | -10-80°C | 100um±15um |
| HX-3015 | ≥10 | ≥12 | ≥30N | 150% | -10-80°C | 200um±15um |
6. Packaging:
Finished-products package: Each rolls separated by release paper and put in plastic bag, then to be boxed
Jumbo roll package: Package by kraft paper first, Then put them into a opp bag.
We can make other package as your requirement, normally our quotation will contain the common package. If you need your own packages, you'd better advise your requirement ahead of time for an accurate quote.
| Packaging Detail | A. 1 roll/shrink, 4 rolls/shrink, 6 rolls/shrink B. 24 rolls/carton, 36rolls/carton, 48rolls/carton according to customer's request. |
| Delivery Detail | within 15-20 days after the order confirmed. |
The common used carton box specification as below:
| Carton box category | Size(L*W*H) |
| normal | 55cm*44cm*36cm |
| normal | 55cm*44cm*32cm |
| normal | 55cm*44cm*26cm |
| normal | 39cm*39cm*32cm |
| normal | 39cm*39cm*35cm |
| normal | 51cm*21cm*30.5cm |
| HX strengthen box | 28cm*23cm*35.5cm |
| Hardened case | 40cm*40cm*35cm |
| Hardened case | 48cm*48cm*35cm |
Packaging process
