Double Coated EVA Foam Tape
Double Coated EVA Foam Tape
EVA foam tape base on EVA backing material available , coating on both sides with strong Solvent Acrylic adhesive or hot melt adhesive and with PE plastic film/ Yellow silicon paper/white silicon paper/glassine silicon paper as release liner.
Product Usage
EVA foam tape is designed for adhering to the irregular surface, fixing the nameplate, auto-mirror and often used in the automobile industry such as door sealing strips, pedal and metal boards. Specially suitable for the fixation of inner structure in the glass combination like the glass curtain wall and soundproof wall etc; also used to stick the car decorations and for the combination orientation of sound source inside the voice box.
Product Features
1) Moderate thickness, good softness, suitable for different use space
2) Good flexibility, prevent components moving when shaken
3) Good holding power, good adhesion to the rough complex surface.
4) Good resistance to temperature and solvent; comply with ROHS environmental standard
5) Surface release material: white paper /other colored release film
6) Backing material / color: Black /White PE foam
7) Adhesive: light white solvent pressure-sensitive adhesive
Technical parameters
| Item No. | 80°Stripping Resistance | Holding Power(hours) | Tensile strength | Breaking Elongation | Temperature resistance | Backing material thickness |
| HX-2010 | ≥10 | ≥12 | ≥15N | 100% | -10-80°C | 50um±15um |
| HX-2015 | ≥10 | ≥12 | ≥20N | 100% | -10-80°C | 100um±15um |
| HX-2020 | ≥10 | ≥12 | ≥30N | 150% | -10-80°C | 200um±15um |
Physical parameters
| Item | EVA foam tape | |
| Adhesive | Solvent adhesive/hot melt adhesive/Acrylic | |
| Color | Black &White | |
| Backing | EVA Foam | |
| Thickness | 0.5mm,1mm, 1.5mm, 2mm 2.5mm,3mm,6mm ect | |
| Glue Tape | Solvent adhesive | Hot melt adhesive &Acrylic |
| Tack | ≥8 # | ≥18 # |
| Holding power | ≥12hrs | ≥3hrs |
| 180°peeling | ≥20N/25mm | ≥6N/25mm |
| Temperature resistance | 80°C | 60°C |
| Tensile strength | 20N/25mm | 10N/25mm |
| Elongation % | 100% | |

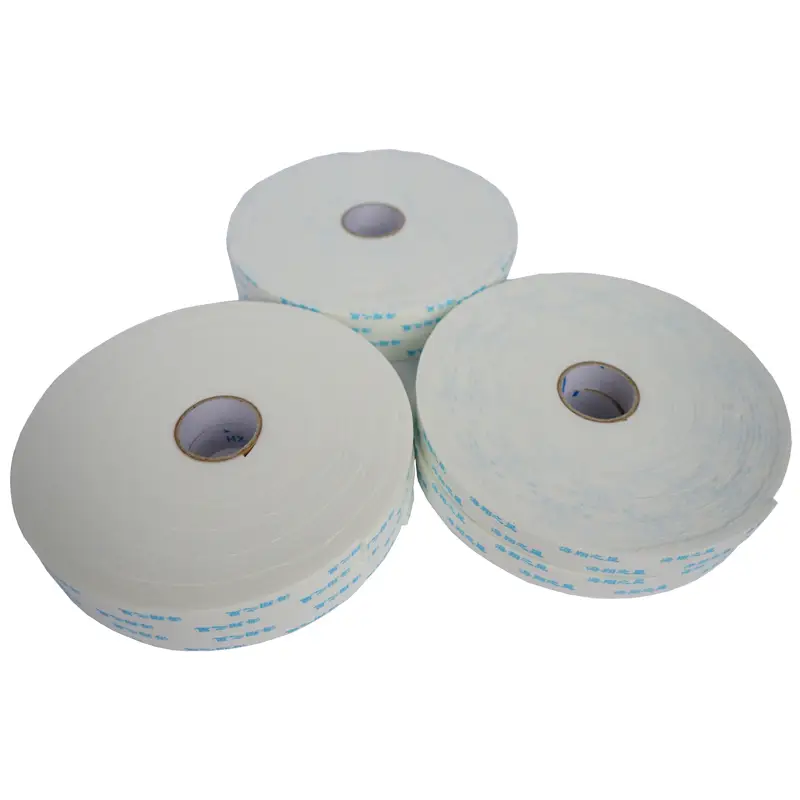

Product image
Our Services
1. Your inquiry related to our product & price will be replied within 24hours.
2. Well-trained & experienced staff are to answer all your inquiries in English of course.
3. Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
4. Your business relationship with us will be confidential to any third party.
5. Good after-sale service offered, please get back if you got question.
FAQ
1. Payment: 50% T/T DEPOSIT PAYMENT IN ADVANCE, BALANCE AGAINST COPY OF B/L, WESTERN UNION, L/C.
2. Production Lead Time: 10 - 20 DAYS AFTER DEPOSIT PAYMENT.
3. Shipping Methods: OCEAN FREIGHT.
4. FOB Shipping port: SHENZHEN, MAINLAND CHINA.
5 If you want to deal with EXW/CIF/CNF term instead of FOB, please specify. Otherwise, FOB price will be quoted under inquiry.
